Khoom Description

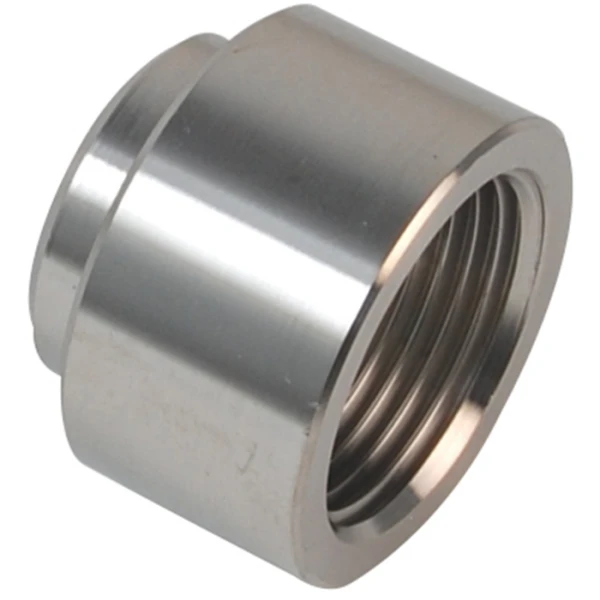

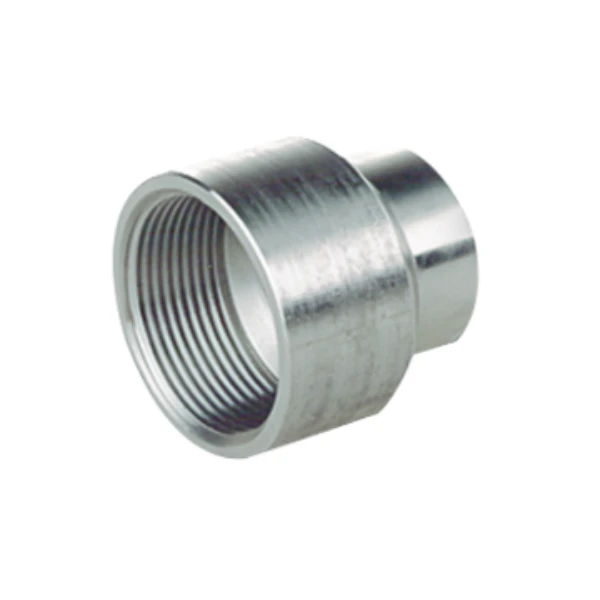

- Qhov no Stainless Hlau Poj Niam Threaded Txo Coupling (Pipe Coupler Adapter) yog qhov tseeb -machined yeeb nkab haum tsim los txuas ob lub kav dej ntawm qhov sib txawv nominal ntau thiab tsawg siv threaded kawg. Ua los ntawm qib siab - qib stainless hlau, nws muab kev ruaj ntseg, xau- nruj, thiab corrosion- tiv thaiv kev sib txuas rau cov kav dej, kev lag luam, thiab cov txheej txheem kav dej. Nws yog qhov zoo tagnrho rau kev koom nrog, txuas ntxiv, lossis hloov kho cov kab yeeb nkab nrog cov qauv yooj yim, txhim khu kev qha.
Khoom Specification
|
Hom |
Xov Couplet |
Txuj |
ASTM B16.11 |
|
Khoom siv lub cev |
Carbon steel, stainless hlau, hlau alloy, super duplex steel, nickel{0}}raws li alloys, thiab lwm yam. |
Warranty |
1 xyoo |
|
Hom kev sib txuas |
xov |
Siab |
3000LB / 6000LB |
|
Xov |
NPT/BSPP/BSPT |
Loj |
1/8''-4'' |
|
Daim ntawv pov thawj |
ISO 9001 Cov |
Kev tsim khoom |
Forging |
|
Media |
Kua, Gas, Chav, Roj |
Manufacturing Peev xwm |
4000pcs / hli |
Cov khoom kos duab
| Qhov ntev yog nyob rau hauv millimeters |
| DN | Nom Pipe Size | Ntev ntawm Xov (Min) |
N | Q | M | E | |
| B* | L2* | ||||||
| 3000 Lb | |||||||
| 8 | 1/4 | 8.1 | 10.2 | 17.5 | 9.5 | 30.2 | 23.8 |
| 10 | 3/8 | 9.1 | 10.4 | 20.7 | 9.5 | 30.2 | 27 |
| 15 | 1/2 | 10.9 | 13.6 | 23.8 | 9.5 | 33.4 | 33.4 |
| 20 | 3/4 | 12.7 | 13.9 | 27 | 9.5 | 34.9 | 38.1 |
| 25 | 1 | 14.7 | 17.3 | 33.4 | 9.5 | 42.9 | 46.1 |
| 32 | 1.1/4 | 17.0 | 18.0 | 42.9 | 9.5 | 47.6 | 55.6 |
| 40 | 1.1/2 | 17.8 | 18.4 | 49.2 | 9.5 | 50.8 | 63.5 |
| 50 | 2 | 19.0 | 19.2 | 61.9 | 9.5 | 57.2 | 79.4 |
| 65 | 2.1/2 | 23.6 | 28.9 | 73.0 | 9.5 | 63.5 | 92.1 |
| 80 | 3 | 25.9 | 30.5 | 88.9 | 9.5 | 69.9 | 111.1 |
| 100 | 4 | 27.7 | 33.0 | 114.3 | 9.5 | 76.2 | 141.3 |
| 6000 Ib | |||||||
| 8 | 1/4 | 8.1 | 10.2 | 17.5 | 9.5 | 30.2 | 25.4 |
| 10 | 3/8 | 9.1 | 10.4 | 20.7 | 9.5 | 30.2 | 31.8 |
| 15 | 1/2 | 10.9 | 13.6 | 23.8 | 9.5 | 33.4 | 38.1 |
| 20 | 3/4 | 12.7 | 13.9 | 27 | 9.5 | 34.9 | 44.5 |
| 25 | 1 | 14.7 | 17.3 | 33.4 | 9.5 | 42.9 | 57.2 |
| 32 | 1.1/4 | 17.0 | 18.0 | 42.9 | 9.5 | 47.6 | 63.5 |
| 40 | 1.1/2 | 17.8 | 18.4 | 49.2 | 9.5 | 50.8 | 76.2 |
| 50 | 2 | 19.0 | 19.2 | 61.9 | 9.5 | 57.2 | 92.1 |
| 65 | 2.1/2 | 23.6 | 28.9 | 73.0 | 9.5 | 63.5 | 108.0 |
| 80 | 3 | 25.9 | 30.5 | 88.9 | 9.5 | 69.9 | 127.0 |
| 100 | 4 | 27.7 | 33.0 | 114.3 | 9.5 | 76.2 | 158.8 |
DIMENSIONAL TOLERANCE ntawm ASME B16.11
| Yam khoom | N | Q | M | E |
| 1/4"-1.1/2" | +1.5/-0.0 | ±0.8 | +0.8/-0.0 | +1.5/-0.0 |
| 2"-4" | +1.5/-0.0 | ±0.8 | +1.5/-0.0 | +1.5/-0.0 |
Nco tseg:
Dimension B yog qhov tsawg kawg nkaus ntev ntawm cov xov zoo meej.Qhov ntev ntawm cov xov muaj txiaj ntsig (B ntxiv cov xov nrog cov hauv paus hniav thiab cov crests) yuav tsum tsis txhob tsawg dua L2 (ntev ntev ntawm cov xov sab nraud) xav tau los ntawm American National Standard rau cov yeeb nkab threads (ANSI / ASME B1.20.1).
Khoom nta
- Premium Stainless Hlau: Muaj kev tiv thaiv corrosion thiab oxidation zoo, zoo tagnrho rau qhov chaw hnyav.
- Ntau qhov ntsuas ntsuas: Muaj nyob rau hauv 2000LB / 3000LB / 6000LB / 9000LB kom phim koj cov kev xav tau.
- Forged Kev Tsim Kho: High-kub forging tshem tawm qhov tsis xws luag sab hauv, muab lub zog zoo dua thiab kev cuam tshuam tsis zoo piv rau cov cam khwb cia fittings.
- Precision Threading: CNC-cov xov tshuab ua kom nruj, xau- pov thawj kev sib txuas nrog cov qauv threaded kav.
- Cov qauv khoom: ASME 16.11, GB / T14383-2018, BS-3799 Ua tau raws li cov qauv kev lag luam thoob ntiaj teb rau kev nyab xeeb thiab kev ua haujlwm.
- Kev kho qis: Smooth, tsis yog - ntxeem tau nto yog yooj yim los ntxuav thiab resistant mus tsim.
- Kev tsim khoom:Pub → Re- tshuaj xyuas → Txiav → Cua sov → Forging → Kev kho cua sov → Ntug trimming → Txhaj tshuaj blasting → Drilling → Machining → Marking → Inspection → Ntim → Shipping
Cov khoom siv
- Roj & Roj
- Tshuaj & Petrochemical
- Kev ua zaub mov & dej haus
- Pharmaceutical Manufacturing
- Kev Kho Dej & Desalination
- Lub zog tiam
- Marine & Offshore
- Muaj kav dej & HVAC
Peb Qhov Kev Pabcuam
1. 12 lub hlis warranty:
● Cov khoom lag luam zoo heev
● Peb sawv tom qab qhov zoo ntawm peb cov khoom 100%
● Tag nrho peb cov khoom tuaj nrog kev lees paub los muab kev thaj yeeb nyab xeeb rau koj.
● Tshiab Guaranteed: Tag nrho peb cov khoom nyob rau hauv cov xwm txheej tshiab hauv OEM lossis Original packing.
2. Txais Txhua Txoj Kev Them Nyiaj:
● Peb feem ntau lees txais T / T (hloov xaim), Western Union, lossis Paypal.
● Cov txiaj ntsig pauv: USD lossis RMB.
● Them TT 30% tso nyiaj ua ntej, 70% tshuav nyiaj them ua ntej xa khoom xa tuaj.
● (Sample order) T / T / Western union 100% thaum pom.
3. Pob Muaj Zog:
Peb pob txheej txheem yog nyob rau hauv zoo meej mob, los yog raws li customized.
4. Kev xa khoom sai:
● Lub sij hawm xa khoom: CIF / CFR / FOB Ningbo / Shanghai Tuam Tshoj, Suav.
● Hnub xa khoom: tsis ntev yog tias hauv Tshuag, 7-20 hnub tom qab tau txais qhov tso nyiaj yog tias xaj ntau.
● Txoj kev xa khoom: peb yuav xa koj cov khoom los ntawm hiav txwv, huab cua, lossis los ntawm kev nthuav qhia (DHL, UPS, FedEx, TNT, EMS).
5. Tom qab- kev muag khoom:
● Zoo heev tom qab- Kev Pabcuam Muag: 24 Teev Ib Lub Sijhawm Thiab 12 Lub Hlis Warranty.
● Lub Neej-Kev Pabcuam Ntev Rau Cov Khoom.
Vim Li Cas Xaiv Peb
1.Stable zoo nrog nruj soj ntsuam cov qauv
2.Txoj kev nplua nuj nyob rau hauv industrial valve mov
3.OEM & customized kev daws teeb meem muaj
4.Kev xa khoom sai thiab kev pabcuam txhim khu kev qha
FAQ
1. Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?
Peb yog cov chaw tsim khoom tshwj xeeb hauv stainless hlau thiab tooj dag li qub thiab fittings, muaj zog OEM muaj peev xwm rau kev lag luam thoob ntiaj teb
2. Koj tus MOQ yog dab tsi?
Cov khoom txheem: Tsawg MOQ, kev txiav txim siab txhawb nqa
Customized khoom: Nyob ntawm tus tsim
Peb txhawb kev txiav txim me me rau thawj zaug kev koom tes.
3. Koj puas tuaj yeem tsim raws li cov duab kos lossis cov qauv?
Yog, peb txhawbOEM & kev cai ntau lawm.
Peb tuaj yeem tsim pwm raws li koj cov qauv, tshwj xeeb tshaj yog rau1-thooj tshwj xeeb fittings.
4. Koj muab cov ntaub ntawv dab tsi?
Stainless hlau: SS304 / SS316
Brass: HPb59-1 / HPb59-3 /HPb58-3 / txhuas-dawb tooj dag
Cov ntaub ntawv xeem cov ntaub ntawv (MTC) muaj yog tias xav tau.
5. Koj qhov ntsuas siab yog dab tsi?
Peb cov khoom tsim nyog rau:
Kev siv nruab nrab mus rau siab siab
Qee cov roj fittings tuaj yeem tshaj10,000 PSI
Lub siab zoo nyob ntawm cov khoom siv thiab tsim.
6. Koj lub sijhawm xa khoom yog dab tsi?
Tshuag / qauv: 7-15 hnub
OEM / customized: 20-35 hnub
Kev tsim khoom sai tuaj yeem npaj rau kev txiav txim sai.
Cov neeg siv khoom ruaj khov tuaj yeem sib tham tau cov ntsiab lus zoo dua.
7. Dab tsi ua lag luam koj tsuas yog xa tawm mus rau?
Peb muaj kev nplua nuj nyob hauv:
Teb chaws USA
Teb chaws Europe
Middle East
Peb paub txog lawv cov qauv thiab cov kev xav tau zoo.
8. Koj ua li cas kom zoo?
100% kev soj ntsuam ua ntej ua zaub mov xa tuaj
Xov gauge soj ntsuam
Kev ntsuas siab / sealing (yog tias xav tau)
Thib peb-kev tshuaj ntsuam xyuas tog yog txais.
9. Cov qauv xov dab tsi koj txhawb nqa?
NPT (American txuj)
BSPT / BSPP (European tus qauv)
Peb tuaj yeem pab kom paub meej cov xov sib raug zoo.
10. Koj lub ntim khoom yog dab tsi?
Txheem export thawv + pallets
Anti- tiv thaiv xeb
Kev cai ntim & logo cim muaj.
11. Koj puas tuaj yeem muab tus nqi sib tw?
Yog - peb muabtus nqi sib tw heev nyob rau hauv tib theem zoo, tshwj xeeb tshaj yog rau kev koom tes ntev -.
